Tamiya DT-03 JR-DT309-LB 25T Servo Saver & Tie Rod Set by Jazrider  [JR-DT309-LB]

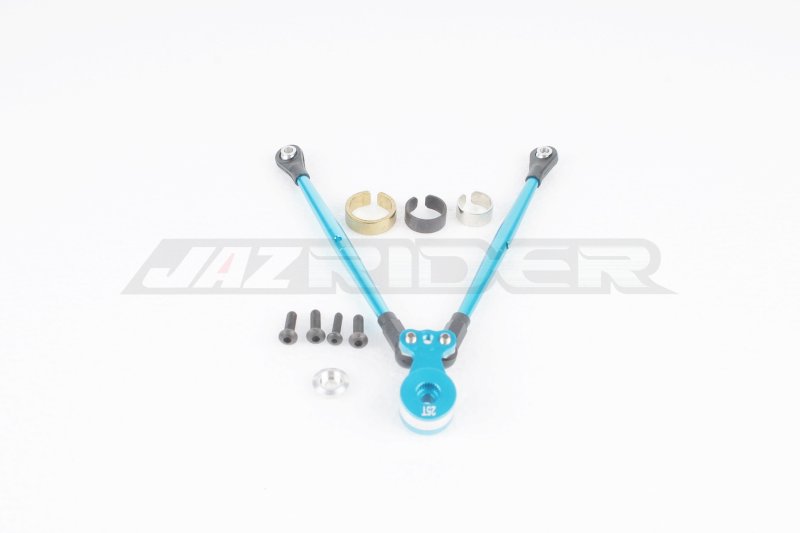

JR-DT309-LB aluminum servo saver and link kit for DT-03

The JR-DT309-LB 25T aluminum servo saver with matched tie rods is supplied as an aftermarket steering upgrade for the Tamiya DT-03 chassis. Its focus is to replace typical plastic steering links with metal parts to reduce flex and help preserve steering geometry during demanding driving.

Compatibility and role: Specifically intended for DT-03 steering systems, the kit performs two roles: it reduces the risk of servo damage from impact and it produces firmer, more consistent steering inputs that assist setup work. It refines steering response rather than changing the car's inherent dynamics alone.

Installation notes: Remove the original saver and install the 25T aluminum unit on the servo spline, then connect the aluminum tie rods to the existing bellcrank and knuckles following the chassis' geometry. Confirm spline match and ensure free suspension travel before final tightening. Use thread-lock where metal fasteners are present and revisit fastener torque after the initial runs.

Practical advice: Start tuning from stock geometry and make small, single-parameter changes. With stiffer links, adjustments to toe and ackermann will be more immediately felt, so proceed incrementally and evaluate performance on a consistent surface.
